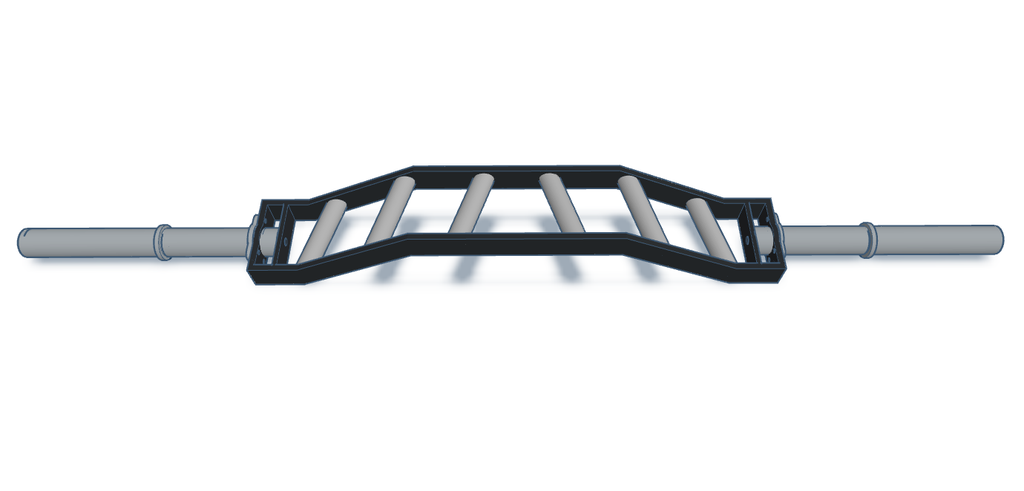

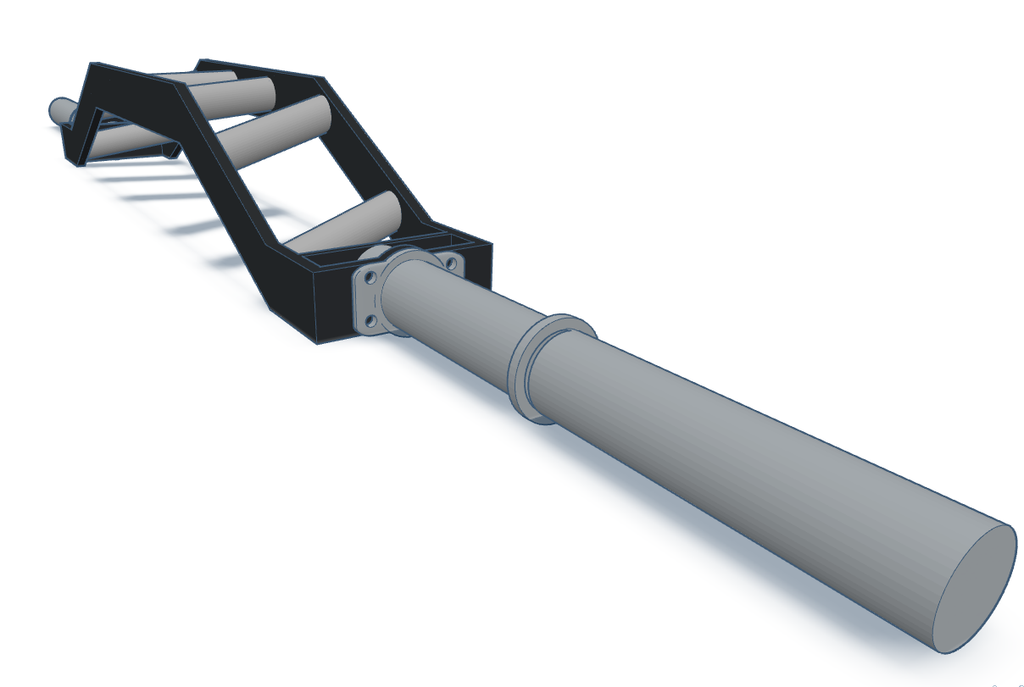

Custom 2" Cambered Barbell

Special order.

Custom Slim Cambered Bar — Specifications

Overall Dimensions

• Overall Length: 69.0 in

• Frame Length: 38.0 in

• Frame Width: 5.5 in

• Camber Depth: 3 in

Grip Configuration

• Grip Diameter: 31 mm

• Grip Length: 5.0 in per handle

• Grip Pairs: 3

• Grip Angle: 20°

• Grip Spans (center-to-center):

  • Inner: 7.0 in

  • Middle: 16.5 in

  • Outer: 26.0 in

• Knurling: Medium–aggressive diamond knurl, full grip length

• Grip Finish: Electroless bright nickel plating

Frame Construction

• Material: 1/4 in flat plate steel

• Construction: Fully welded

• Frame Finish: Matte black

Sleeves

• Sleeve Diameter: 48 mm

• Loadable Sleeve Length: 9.0 in per side

• Sleeve Finish: Electroless bright nickel plating

• Sleeve Attachment: Modular bolt-on pin system

  • Four-bolt front mount with rear retention bolt

• Plate Stops: Welded

• Width at Plate Stops: 51.0 in

Performance & Notes

• Estimated Load Rating: 900+ lb (conservative estimate)

• Bar Weight: TBD

• Build Type: Custom, made-to-order

• Notes: Final dimensions, weight, and load rating subject to minor variation
